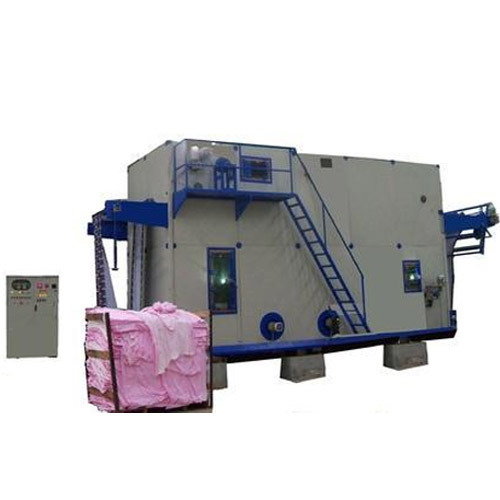

Loop Steamer Machine
Loop Steamer Machine

Loop Steamer machine have been first time established in South India .Two in One Process Ageing and curing. Design as per Required capacity. Quality of the machine is Durable and the price is reasonable as compared to market price.

Technical Specification:

  • Fabric content up to 190 Meter
  • Roller width 2000 mm -200cm -78.7.inch
  • Cloth working width 1850 mm -185cm- 72.8 inc
  • Adjustable Loop Length 1.5 to 2.5 Meters
  • Distance between conveyor rollers : 101 mm – 10.1 cm
  • Speed from : 15.8 TO 31.7 Meters/min
  • Dwell time from : 6 to 12 min
  • Temperature range : 102°C-108° C for Saturated Oil Application
  • Oil Temperature required : 240º C
  • Oil Pressure required : 1.0 kg/cm²
  • Installed power : 9.75 kw
  • Steam Consumption : 265 kg/hr in High Temp. Application 250 kg/hr in Low Temp. Application
  • Steam pressure required : 4 kg/cm2
  • Before pressure reducing valve Suitable for Fabrics : Cotton, Viscose, Polyester, Silks and its blend
  • Type of Fabric : Knitted / Woven
+
